Pipeline and Haz. Matls. Safety Admin., DOT

§ 172.317

color sufficiently contrasts so that the
black border, top and bottom portions
of the square-on-point, and the ‘‘Y’’
symbol, if applicable, are clearly rec-
ognizable.

(d)

Transitional exceptions—(1)  Alter-

native markings. Except for transpor-
tation by aircraft and until December
31, 2015, a package containing a limited
quantity may continue to be marked in
accordance with the requirements of
this section in effect on October 1, 2010
(i.e., square-on-point with identifica-
tion number only) as an alternative to
the marking required by paragraph (a)
of this section.

(2)

ORM–D marked packaging. Except

for transportation by aircraft and until
December 31, 2020, a packaging marked
in accordance with § 172.316 of this part
is not required to be marked with the
limited quantity marking required by
paragraph (a) of this section. For
transportation by aircraft and until
December 31, 2012, a packaging marked
in accordance with § 172.316(a)(1) is not
required to be marked with the limited
quantity ‘‘Y’’ marking required by
paragraph (b) of this section.

[76 FR 82174, Dec. 30, 2011, as amended at 78
FR 1073, Jan. 7, 2013; 78 FR 65478, Oct. 31, 2013;
80 FR 1149, Jan. 8, 2015; 81 FR 3671, Jan. 21,
2016]

§ 172.316

Packagings containing mate-

rials classed as ORM-D.

(a) Each non-bulk packaging con-

taining a material classed as ORM–D
must be marked on at least one side or
end with the ORM–D designation im-
mediately following or below the prop-
er shipping name of the material. The
ORM designation must be placed with-
in a rectangle that is approximately 6.3
mm (0.25 inches) larger on each side
than the designation. Until December
31, 2020, the designation ORM–D is for
an ORM–D material, as defined in
§ 173.144, that is packaged in accordance
with §§ 173.63(b), 173.150 through 173.156,
and 173.306.

(b) When the ORM-D marking includ-

ing the proper shipping name can not
be affixed on the package surface, it
may be on an attached tag.

(c) The marking ORM-D is the cer-

tification by the person offering the
packaging for transportation that the
material is properly described, classed,
packaged, marked and labeled (when
appropriate) and in proper condition
for transportation according to the ap-
plicable regulations of this subchapter.
This form of certification does not pre-
clude the requirement for a certificate
on a shipping paper when required by
subpart C of this part.

[Amdt. 172–29, 41 FR 15996, Apr. 15, 1976, as
amended by Amdt. 172–123, 55 FR 52592, Dec.
21, 1990; 56 FR 66254, Dec. 20, 1991; 76 FR 3366,
Jan. 19, 2011; 78 FR 1113, Jan. 7, 2013; 78 FR
65478, Oct. 31, 2013]

§ 172.317

KEEP AWAY FROM HEAT

handling mark.

(a)

General.  For transportation by

aircraft, each package containing self-
reactive substances of Division 4.1 or
organic peroxides of Division 5.2 must
be marked with the KEEP AWAY
FROM HEAT handling mark specified
in this section.

(b)

Location and design. The marking

must be a rectangle measuring at least
105 mm (4.1 inches) in height by 74 mm
(2.9 inches) in width as measured from
the outside of the lines forming the
border. Markings with not less than
half this dimension are permissible
where the dimensions of the package
can only bear a smaller mark.

(1)

Transitional exception. A marking

in conformance with the requirements
of this paragraph in effect on December
31, 2014, may continue to be used until
December 31, 2016.

(2) For domestic transportation, a

packaging marked prior to January 1,
2017 and in conformance with the re-
quirements of this paragraph in effect
on December 31, 2014, may continue in
service until the end of its useful life.

(c)

KEEP AWAY FROM HEAT han-

dling mark. The KEEP AWAY FROM
HEAT handling mark must conform to
the following:

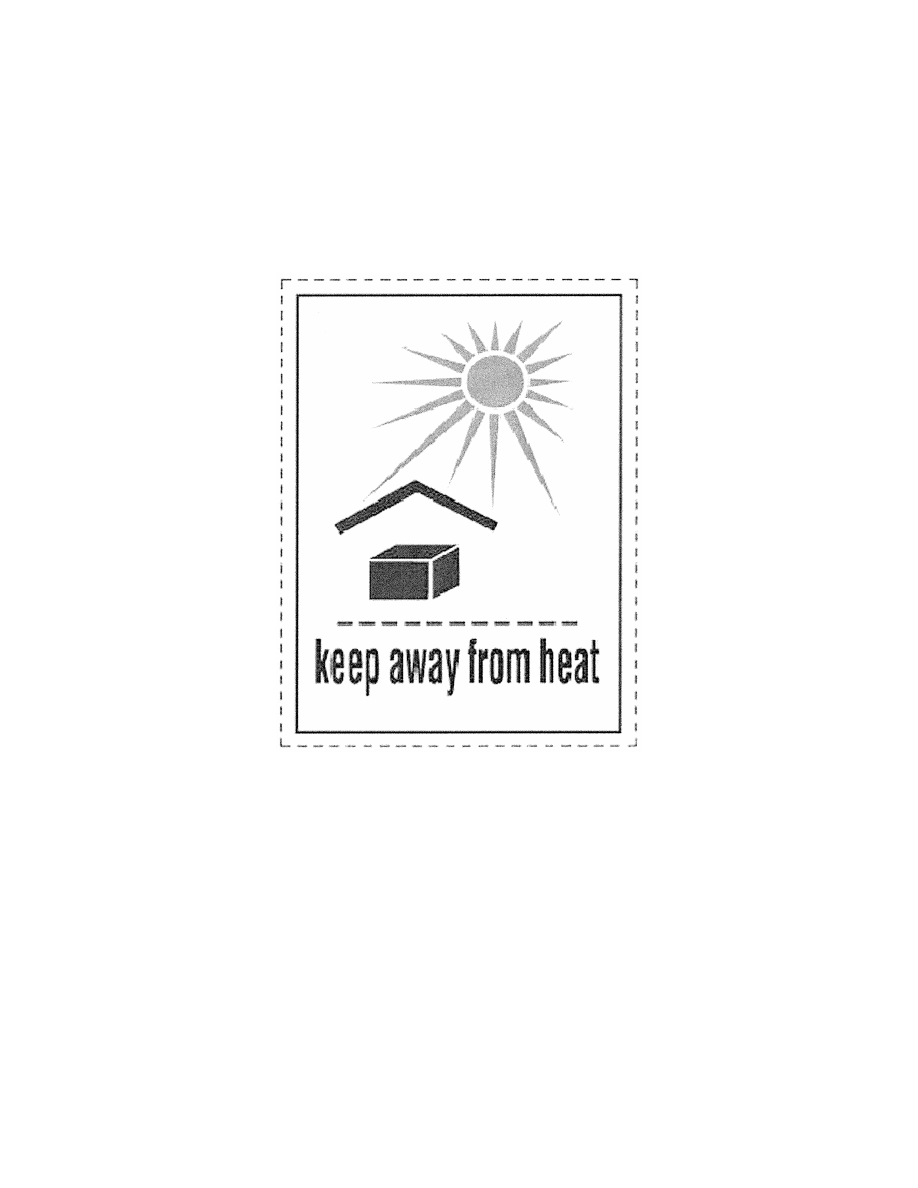

(1) Except for size, the KEEP AWAY

FROM HEAT handling mark must ap-
pear as follows:

VerDate Sep<11>2014

11:45 Oct 30, 2019

Jkt 247227

PO 00000

Frm 00403

Fmt 8010

Sfmt 8010

Q:\49\49V2.TXT

PC31

kpayne on VMOFRWIN702 with $$_JOB

background image

394

49 CFR Ch. I (10–1–19 Edition)

§ 172.320

(2) The symbol, letters and border

must be black and the background
white, except for the starburst which
must be red.

(3) The KEEP AWAY FROM HEAT

handling marking required by para-
graph (a) of this section must be dura-
ble, legible and displayed on a back-
ground of contrasting color.

[69 FR 76153, Dec. 20, 2004, as amended at 80
FR 1150, Jan. 8, 2015]

§ 172.320

Explosive hazardous mate-

rials.

(a) Except as otherwise provided in

paragraphs (b), (c), (d) and (e) of this
section, each package containing a
Class 1 material must be marked with
the EX-number for each substance, ar-
ticle or device contained therein.

(b) Except for fireworks approved in

accordance with § 173.64 of this sub-
chapter, a package of Class 1 materials
may be marked as follows, in lieu of
the EX number required by paragraph
(a) of this section:

(1) With a national stock number

issued by the Department of Defense or
identifying information, such as a
product code required by regulations
for commercial explosives specified in
27 CFR part 555, if the national stock
number or identifying information can
be specifically associated with the EX
number assigned; or

(2) For Division 1.4G consumer fire-

works reviewed by a Fireworks Certifi-
cation Agency approved in accordance
with 49 CFR part 107 subpart E and cer-
tified in accordance with § 173.65, with
