49 CFR Ch. I (10–1–23 Edition)

§ 172.415

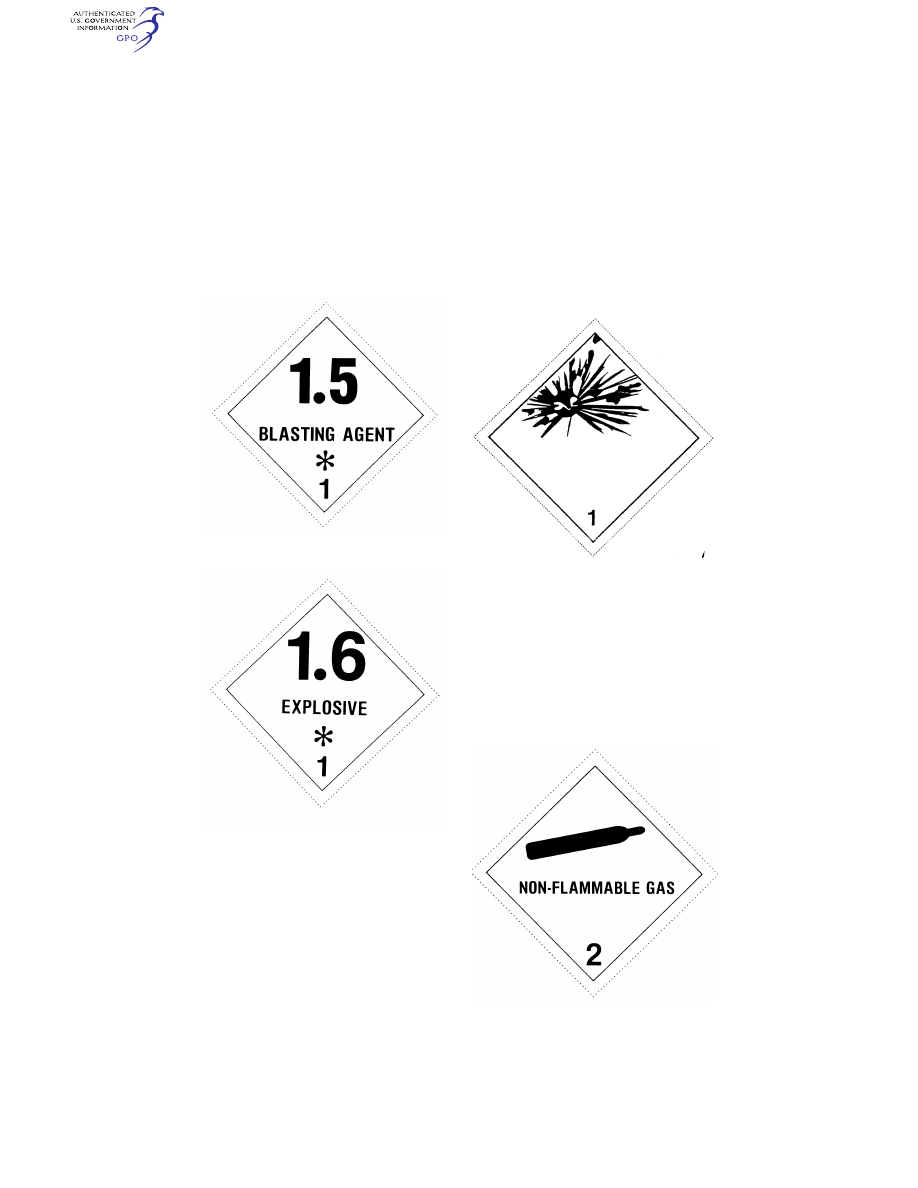

EXPLOSIVE 1.5:

EXPLOSIVE 1.6:

(d) In addition to complying with

§ 172.407, the background color on the
EXPLOSIVE 1.4, EXPLOSIVE 1.5 and
EXPLOSIVE 1.6 label must be orange.
The ‘‘*’’ must be replaced with the ap-
propriate compatibility group. The
compatibility group letter must be
shown as a capitalized Roman letter.
Division numbers must measure at
least 30 mm (1.2 inches) in height and
at least 5 mm (0.2 inches) in width.

(e) An EXPLOSIVE subsidiary label

is required for materials identified in
Column (6) of the HMT as having an ex-
plosive subsidiary hazard. The division
number or compability group letter
may be displayed on the subsidiary

hazard label. Except for size and color,
the EXPLOSIVE subsidiary label must
be as follows:

(f) The EXPLOSIVE subsidiary label

must comply with § 172.407.

[Amdt. 172–123, 56 FR 66256, Dec. 20, 1991, as
amended by Amdt. 172–139, 59 FR 67490, Dec.
29, 1994; 66 FR 33425, June 21, 2001; 68 FR
45031, July 31, 2003]

§ 172.415

NON-FLAMMABLE GAS

label.

(a) Except for size and color, the

NON-FLAMMABLE GAS label must be
as follows:

(b) In addition to complying with

§ 172.407, the background color on the

background image

427

Pipeline and Haz. Matls. Safety Admin., DOT

§ 172.420

NON-FLAMMABLE GAS label must be
green.

[Amdt. 172–123, 56 FR 66256, Dec. 20, 1991]

§ 172.416

POISON GAS label.

(a) Except for size and color, the POI-

SON GAS label must be as follows:

(b) In addition to complying with

§ 172.407, the background on the POI-
SON GAS label and the symbol must be
white. The background of the upper di-
amond must be black and the lower
point of the upper diamond must be 14
mm (0.54 inches) above the horizontal
center line.

[62 FR 39405, July 22, 1997]

§ 172.417

FLAMMABLE GAS label.

(a) Except for size and color, the

FLAMMABLE GAS label must be as
follows:

(b) In addition to complying with

§ 172.407, the background color on the
FLAMMABLE GAS label must be red.

[Amdt. 172–123, 56 FR 66257, Dec. 20, 1991]

§ 172.419

FLAMMABLE LIQUID label.

(a) Except for size and color the

FLAMMABLE LIQUID label must be as
follows:

(b) In addition to complying with

§ 172.407, the background color on the
FLAMMABLE LIQUID label must be
red.

[Amdt. 172–123, 56 FR 66257, Dec. 20, 1991]

§ 172.420

FLAMMABLE SOLID label.

(a) Except for size and color, the

FLAMMABLE SOLID label must be as
follows:
