Pipeline and Haz. Matls. Safety Admin., DOT

§ 172.420

NON-FLAMMABLE GAS label must be
green.

[Amdt. 172–123, 56 FR 66256, Dec. 20, 1991]

§ 172.416

POISON GAS label.

(a) Except for size and color, the POI-

SON GAS label must be as follows:

(b) In addition to complying with

§ 172.407, the background on the POI-
SON GAS label and the symbol must be
white. The background of the upper di-
amond must be black and the lower
point of the upper diamond must be 14
mm (0.54 inches) above the horizontal
center line.

[62 FR 39405, July 22, 1997]

§ 172.417

FLAMMABLE GAS label.

(a) Except for size and color, the

FLAMMABLE GAS label must be as
follows:

(b) In addition to complying with

§ 172.407, the background color on the
FLAMMABLE GAS label must be red.

[Amdt. 172–123, 56 FR 66257, Dec. 20, 1991]

§ 172.419

FLAMMABLE LIQUID label.

(a) Except for size and color the

FLAMMABLE LIQUID label must be as
follows:

(b) In addition to complying with

§ 172.407, the background color on the
FLAMMABLE LIQUID label must be
red.

[Amdt. 172–123, 56 FR 66257, Dec. 20, 1991]

§ 172.420

FLAMMABLE SOLID label.

(a) Except for size and color, the

FLAMMABLE SOLID label must be as
follows:

428

49 CFR Ch. I (10–1–23 Edition)

§ 172.422

(b) In addition to complying with

§ 172.407, the background on the FLAM-
MABLE SOLID label must be white
with vertical red stripes equally spaced
on each side of a red stripe placed in
the center of the label. The red vertical
stripes must be spaced so that, vis-
ually, they appear equal in width to
the white spaces between them. The
symbol (flame) and text (when used)
must be overprinted. The text ‘‘FLAM-
MABLE SOLID’’ may be placed in a
white rectangle.

[Amdt. 172–123, 56 FR 66257, Dec. 20, 1991]

§ 172.422

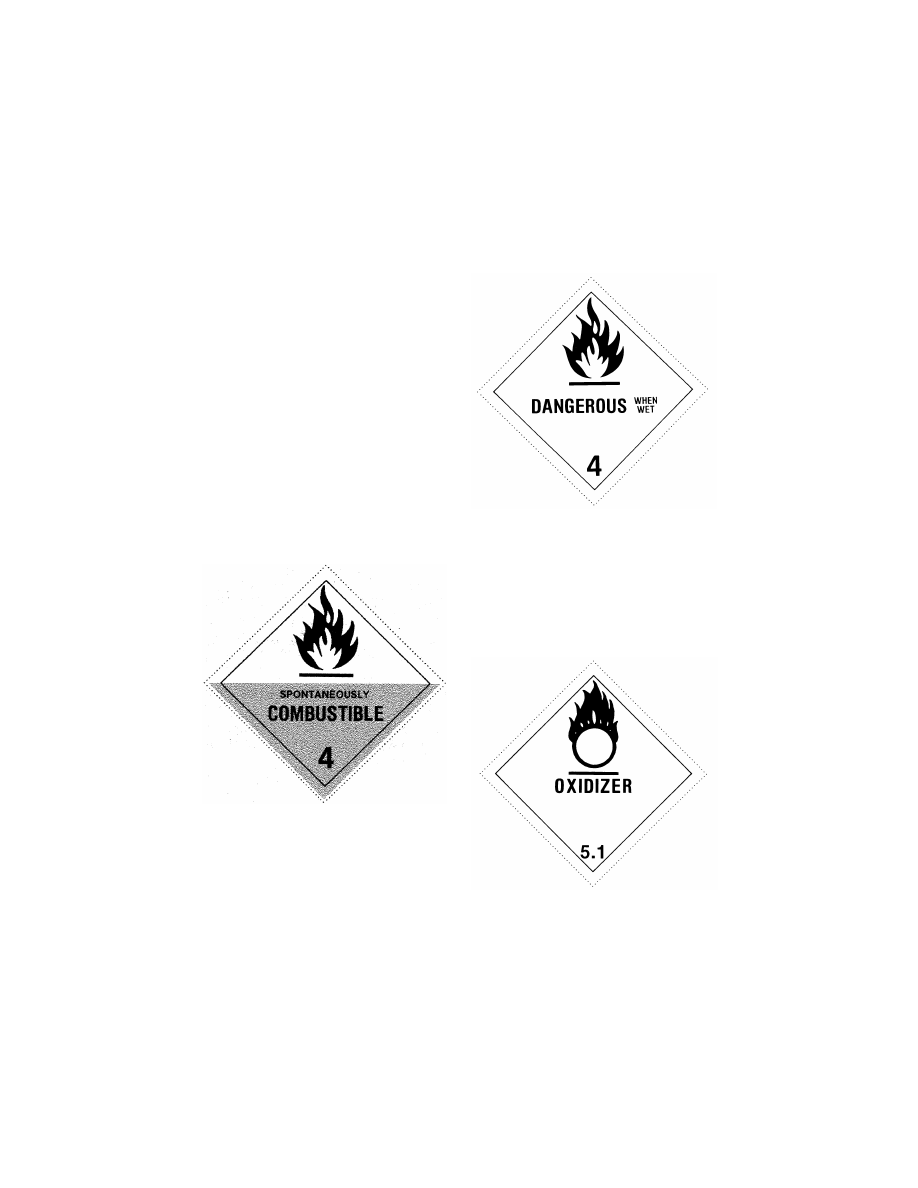

SPONTANEOUSLY COMBUS-

TIBLE label.

(a) Except for size and color, the

SPONTANEOUSLY COMBUSTIBLE
label must be as follows:

(b) In addition to complying with

§ 172.407, the background color on the
lower half of the SPONTANEOUSLY
COMBUSTIBLE label must be red and
the upper half must be white.

[Amdt. 172–123, 56 FR 66257, Dec. 20, 1991, as
amended at 57 FR 45458, Oct. 1, 1992]

§ 172.423

DANGEROUS WHEN WET

label.

(a) Except for size and color, the

DANGEROUS WHEN WET label must
be as follows:

(b) In addition to complying with

§ 172.407, the background color on the
DANGEROUS WHEN WET label must
be blue.

[Amdt. 172–123, 56 FR 66257, Dec. 20, 1991]

§ 172.426

OXIDIZER label.

(a) Except for size and color, the OXI-

DIZER label must be as follows:

(b) In addition to complying with

§ 172.407, the background color on the
OXIDIZER label must be yellow.

[Amdt. 172–123, 56 FR 66257, Dec. 20, 1991]

§ 172.427

ORGANIC PEROXIDE label.

(a) Except for size and color, the OR-

GANIC PEROXIDE label must be as
follows:
