49 CFR Ch. I (10–1–19 Edition)

§ 172.441

and symbol must be black, except for
the ‘‘III’’ which must be red.

[Amdt. 172–123, 56 FR 66259, Dec. 20, 1991]

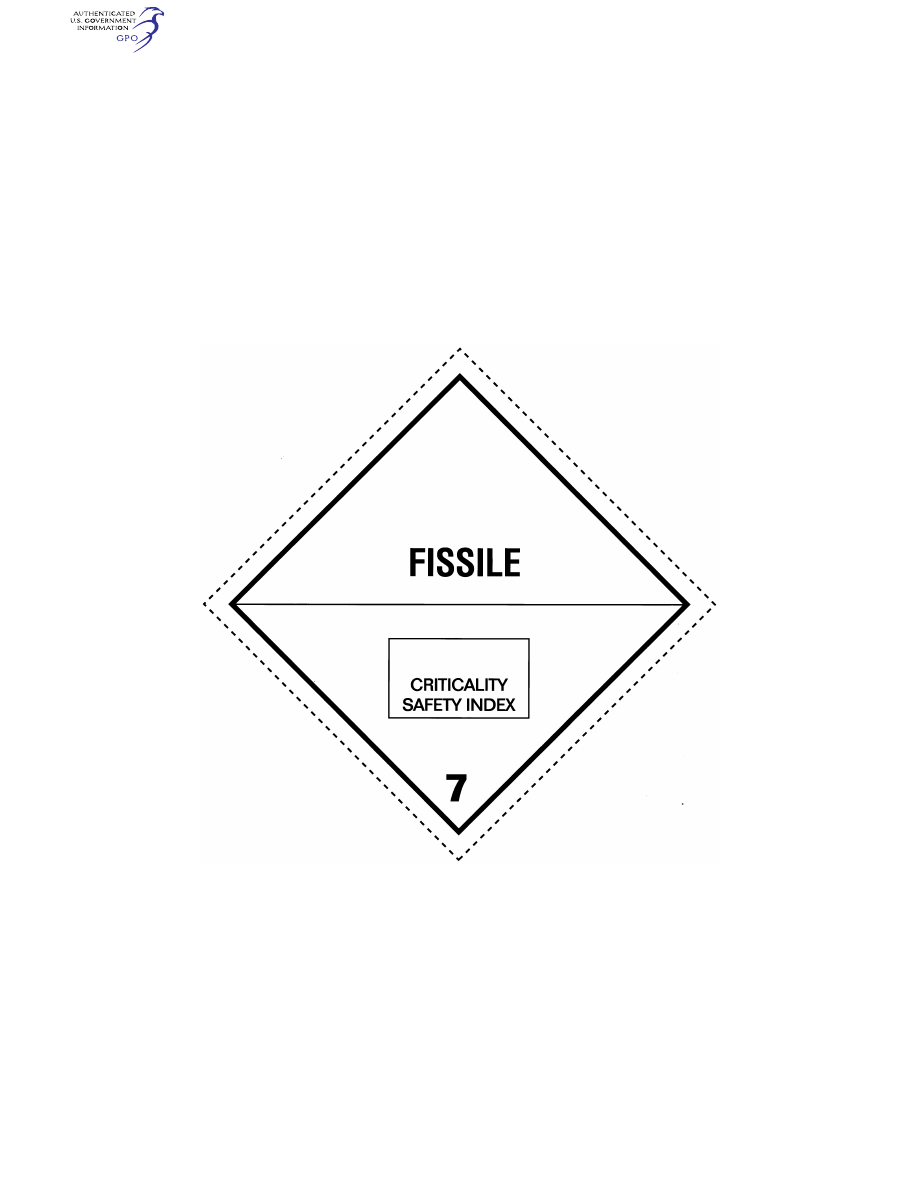

§ 172.441

FISSILE label.

(a) Except for size and color, the

FISSILE label must be as follows:

VerDate Sep<11>2014

11:45 Oct 30, 2019

Jkt 247227

PO 00000

Frm 00432

Fmt 8010

Sfmt 8006

Q:\49\49V2.TXT

PC31

ER26ja04.000</GPH>

kpayne on VMOFRWIN702 with $$_JOB

background image

423

Pipeline and Haz. Matls. Safety Admin., DOT

§ 172.447

(b) In addition to complying with

§ 172.407, the background color on the
FISSILE label must be white.

[69 FR 3669, Jan. 26, 2004]

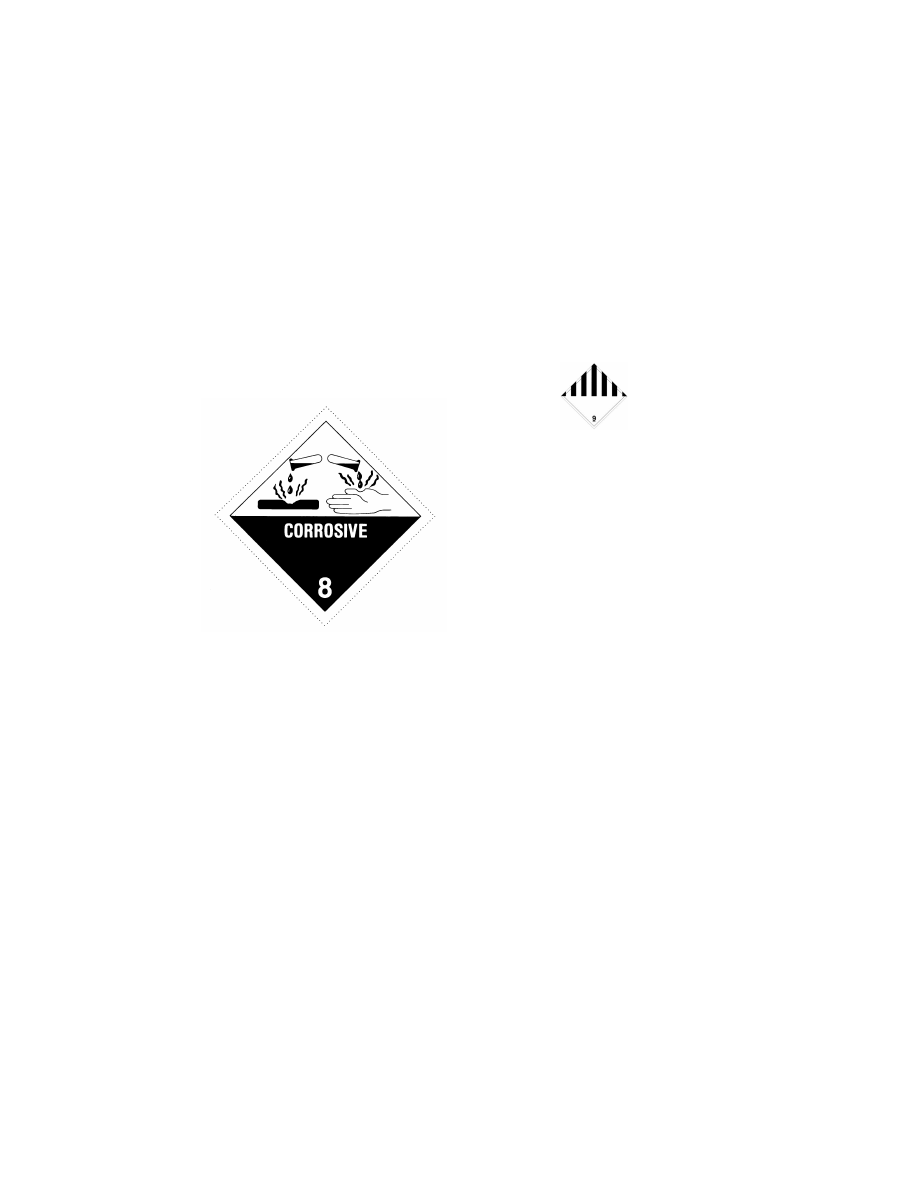

§ 172.442

CORROSIVE label.

(a) Except for size and color, the

CORROSIVE label must be as follows:

(b) In addition to complying with

§ 172.407, the background on the COR-
ROSIVE label must be white in the top
half and black in the lower half.

[Amdt. 172–123, 56 FR 66259, Dec. 20, 1991]

§ 172.444

[Reserved]

§ 172.446

CLASS 9 label.

(a) Except for size and color, the

‘‘CLASS 9’’ (miscellaneous hazardous
materials) label must be as follows:

(b) In addition to complying with

§ 172.407, the background on the CLASS
9 label must be white with seven black
vertical stripes on the top half. The
black vertical stripes must be spaced,
so that, visually, they appear equal in
width to the six white spaces between
them. The lower half of the label must
be white with the class number ‘‘9’’ un-
derlined and centered at the bottom.
The solid horizontal line dividing the
lower and upper half of the label is op-
tional.

(c) Labels conforming to require-

ments in place on August 18, 2011 may
continue to be used until October 1,
2014.

[Amdt. 172–123, 56 FR 66259, Dec. 20, 1991, as
amended at 74 FR 2252, Jan. 14, 2009; 76 FR
43528, July 20, 2011; 76 FR 56314, Sept. 13, 2011;
76 FR 81400, Dec. 28, 2011]

§ 172.447

LITHIUM BATTERY label.

(a) Except for size and color, the

LITHIUM BATTERY label must be as
follows:

VerDate Sep<11>2014

11:45 Oct 30, 2019

Jkt 247227

PO 00000

Frm 00433

Fmt 8010

Sfmt 8010

Q:\49\49V2.TXT

PC31

EC02MR91.035</GPH>

ER28DE11.007</GPH>
