433
Pipeline and Haz. Matls. Safety Admin., DOT
§ 172.447
(b) In addition to complying with
§ 172.407, the background color on the
FISSILE label must be white.
[69 FR 3669, Jan. 26, 2004]
§ 172.442
CORROSIVE label.
(a) Except for size and color, the
CORROSIVE label must be as follows:
(b) In addition to complying with
§ 172.407, the background on the COR-
ROSIVE label must be white in the top
half and black in the lower half.
[Amdt. 172–123, 56 FR 66259, Dec. 20, 1991]
§ 172.444
[Reserved]
§ 172.446
CLASS 9 label.
(a) Except for size and color, the
‘‘CLASS 9’’ (miscellaneous hazardous
materials) label must be as follows:
(b) In addition to complying with
§ 172.407, the background on the CLASS
9 label must be white with seven black
vertical stripes on the top half. The
black vertical stripes must be spaced,
so that, visually, they appear equal in
width to the six white spaces between
them. The lower half of the label must
be white with the class number ‘‘9’’ un-
derlined and centered at the bottom.
[Amdt. 172–123, 56 FR 66259, Dec. 20, 1991, as
amended at 74 FR 2252, Jan. 14, 2009; 76 FR
43528, July 20, 2011; 76 FR 56314, Sept. 13, 2011;
76 FR 81400, Dec. 28, 2011; 85 FR 83381, Dec. 21,
2020]
§ 172.447

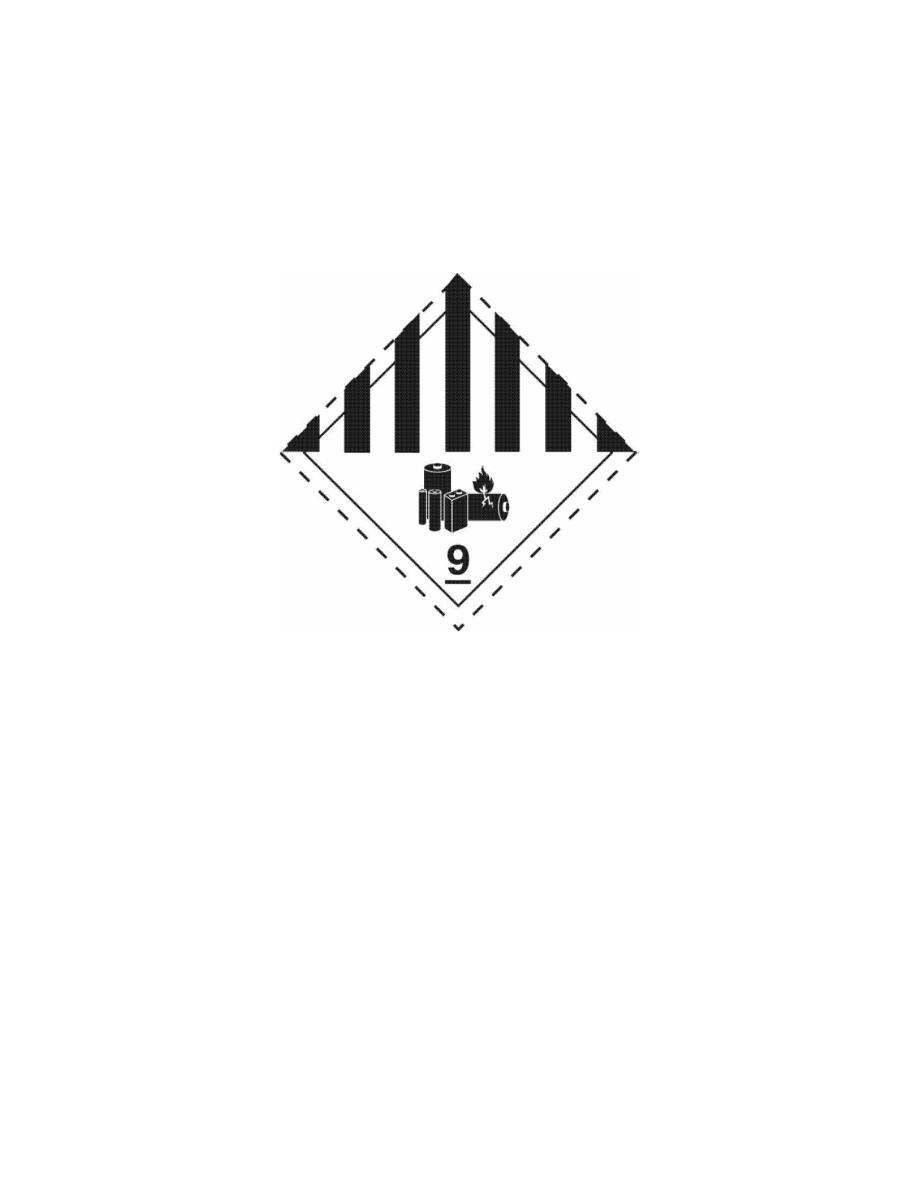

LITHIUM BATTERY label.
(a) Except for size and color, the
LITHIUM BATTERY label must be as
follows:
