§ 172.448

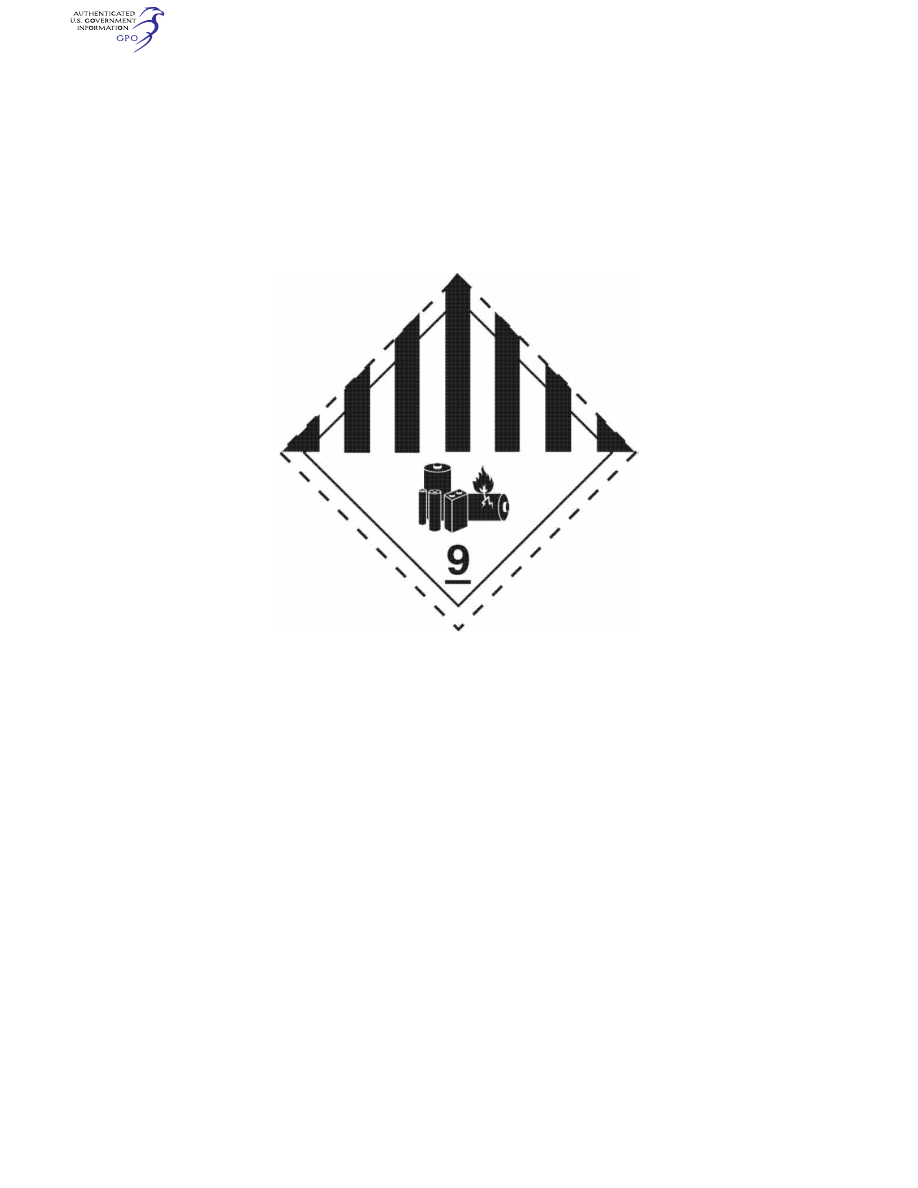

(b) In addition to complying with

§ 172.407, the background on the LITH-
IUM BATTERY label must be white
with seven black vertical stripes on the
top half. The black vertical stripes
must be spaced, so that, visually, they
appear equal in width to the six white
spaces between them. The lower half of
the label must be white with the sym-
bol (battery group, one broken and
emitting flame) and class number ‘‘9’’

underlined and centered at the bottom
in black.

[82 FR 15873, Mar. 30, 2017, as amended at 87
FR 44991, July 26, 2022]

§ 172.448

CARGO AIRCRAFT ONLY

label.

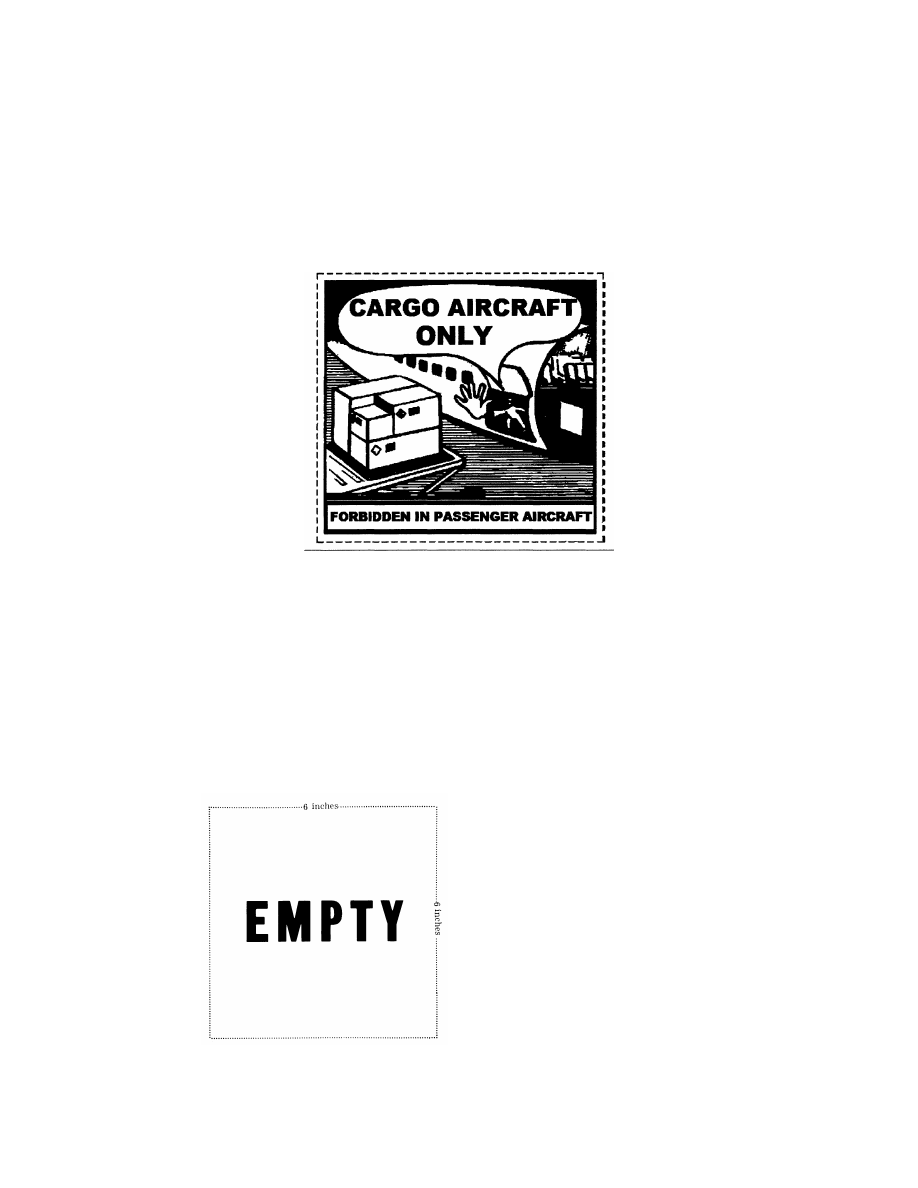

(a) Except for size and color, the

CARGO AIRCRAFT ONLY label must
be as follows:

435

Pipeline and Haz. Matls. Safety Admin., DOT

§ 172.500

(b) The CARGO AIRCRAFT ONLY

label must be black on an orange back-
ground.

(c) A CARGO AIRCRAFT ONLY label

conforming to the specifications in this
section and in § 172.407(c)(2) in effect on
October 1, 2008, may be used until Jan-
uary 1, 2013.

[74 FR 2252, Jan. 14, 2009, as amended at 75
FR 72, Jan. 4, 2010]

§ 172.450

EMPTY label.

(a) Each EMPTY label, except for

size, must be as follows:

(1) Each side must be at least 6

inches (152 mm.) with each letter at
least 1 inch (25.4 mm.) in height.

(2) The label must be white with

black printing.

(b) [Reserved]

Subpart F—Placarding

§ 172.500

Applicability of placarding

requirements.

(a) Each person who offers for trans-

portation or transports any hazardous
material subject to this subchapter
shall comply with the applicable
placarding requirements of this sub-
part.

(b) This subpart does not apply to—
(1) Infectious substances;
(2) Hazardous materials authorized

by this subchapter to be offered for
transportation as a limited quantity
when identified as such on a shipping
paper in accordance with § 172.203(b) or
when marked as such in accordance
with § 172.315.

(3) Hazardous materials prepared in

accordance with § 173.13 of this sub-
chapter;

(4) Hazardous materials which are

packaged as small quantities under the
provisions of §§ 173.4, 173.4a, 173.4b of
this subchapter; and
