§ 172.523

outside of the solid line inner border in
no larger than 10-point type.

(f)

Exceptions.

When hazardous mate-

rials are offered for transportation or
transported under the provisions of
subpart C of part 171 of this subchapter,
a placard conforming to the specifica-
tions in the UN Recommendations, the
ICAO Technical Instructions, the
IMDG Code, or the Transport Canada
TDG Regulations (IBR, see § 171.7 of
this subchapter) may be used in place
of a corresponding placard conforming
to the requirements of this subpart.
However, a bulk packaging, transport
vehicle, or freight container containing
a material poisonous by inhalation (see
§ 171.8 of this subchapter) must be plac-
arded in accordance with this subpart
(see § 171.23(b)(10) of this subchapter).

(g)

Trefoil symbol.

The trefoil symbol

on the RADIOACTIVE placard must
meet the appropriate specification in
appendix B of this part.

[Amdt. 172–123, 55 FR 52601, Dec. 21, 1990, as
amended at 56 FR 66260, Dec. 20, 1991; 57 FR
45460, Oct. 1, 1992; Amdt. 172–143, 60 FR 50305,
Sept. 28, 1995; 65 FR 50460, Aug. 18, 2000; 66 FR
33426, June 21, 2001; 66 FR 44255, Aug. 22, 2001;
67 FR 15743, Apr. 3, 2002; 70 FR 34075, June 13,
2005; 69 FR 64473, Nov. 4, 2004; 72 FR 25176,
May 3, 2007; 76 FR 43528, July 20, 2011; 76 FR
56314, Sept. 13, 2011; 80 FR 1151, Jan. 8, 2015;
83 FR 55807, Nov. 7, 2018; 87 FR 79774, Dec. 27,
2022]

§ 172.521

DANGEROUS placard.

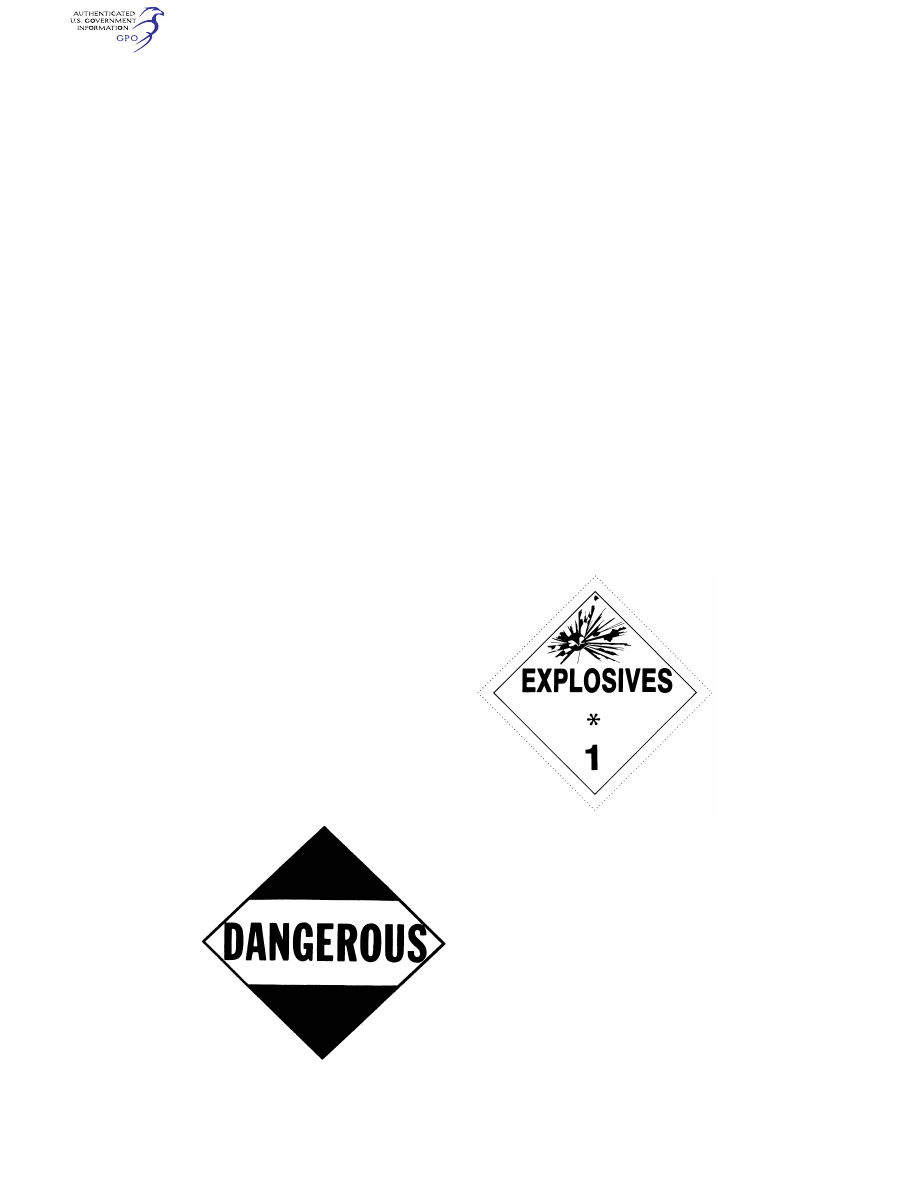

(a) Except for size and color, the

DANGEROUS placard must be as fol-
lows:

(b) In addition to meeting the re-

quirements of § 172.519, and appendix B
to this part, the DANGEROUS placard
must have a red upper and lower tri-
angle. The placard center area and

1

2

inch (12.7 mm.) border must be white.
The inscription must be black with the

1

8

-inch (3.2 mm.) border marker in the

white area at each end of the inscrip-
tion red.

[Amdt. 172–29, 41 FR 15996, Apr. 15, 1976, as
amended by Amdt. 172–29A, 41 FR 40680, Sept.
20, 1976]

§ 172.522

EXPLOSIVES 1.1, EXPLO-

SIVES 1.2 and EXPLOSIVES 1.3
placards.

(a) Except for size and color, the EX-

PLOSIVES 1.1, EXPLOSIVES 1.2 and
EXPLOSIVES 1.3 placards must be as
follows:

(b) In addition to complying with

§ 172.519 of this subpart, the background
color on the EXPLOSIVES 1.1, EXPLO-
SIVES 1.2, and EXPLOSIVES 1.3 plac-
ards must be orange. The ‘‘*’’ shall be
replaced with the appropriate division
number and, when required, appro-
priate compatibility group letter. The
symbol, text, numerals and inner bor-
der must be black.

[Amdt. 172–123, 55 FR 52602, Dec. 21, 1990, as
amended at 56 FR 66260, Dec. 20, 1991]

§ 172.523

EXPLOSIVES 1.4 placard.

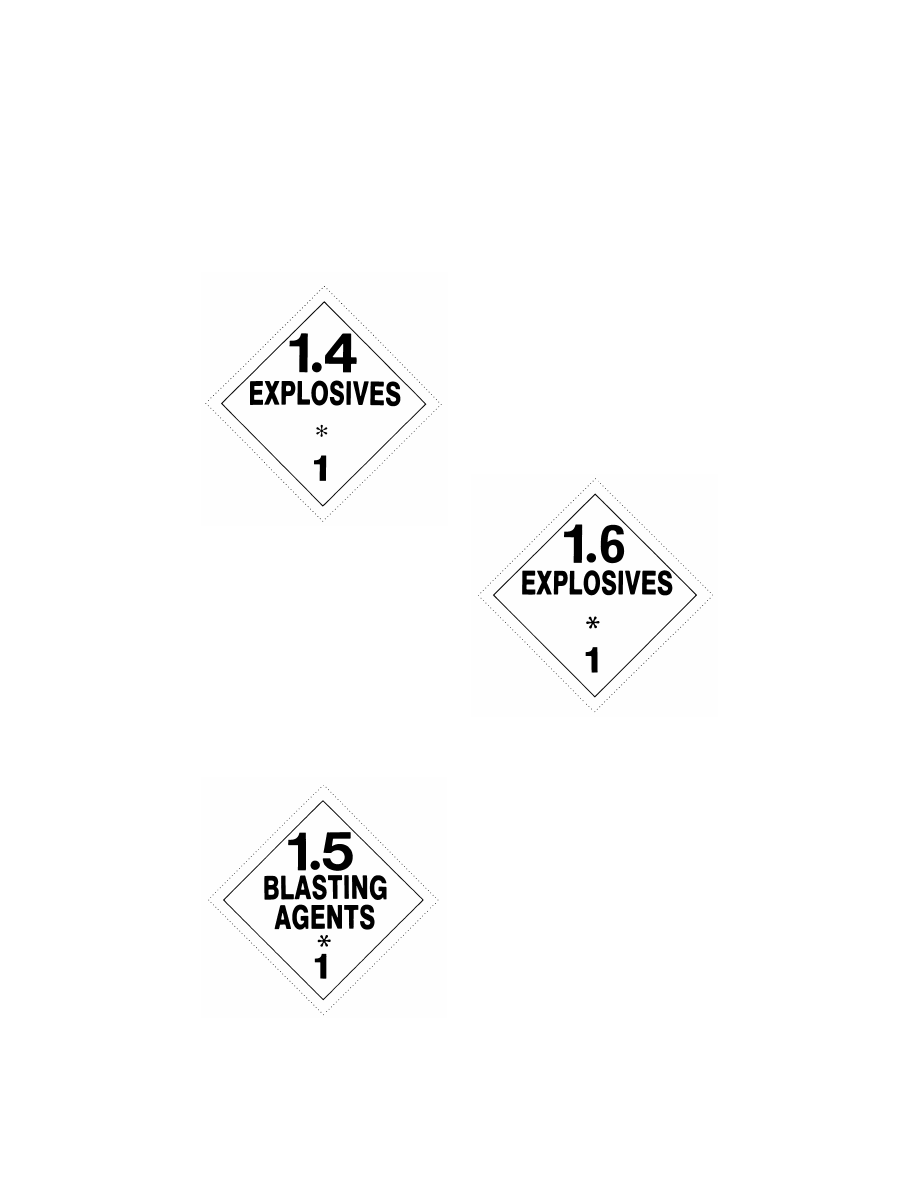

(a) Except for size and color, the EX-

PLOSIVES 1.4 placard must be as fol-
lows:

background image

444

49 CFR Ch. I (10–1–23 Edition)

§ 172.524

(b) In addition to complying with

§ 172.519 of this subpart, the background
color on the EXPLOSIVES 1.4 placard
must be orange. The ‘‘*’’ shall be re-
placed, when required, with the appro-
priate compatibility group letter. The
division numeral, 1.4, must measure at
least 64 mm (2.5 inches) in height. The
text, numerals and inner border must
be black.

[Amdt. 172–123, 55 FR 52602, Dec. 21, 1990, as
amended at 56 FR 66261, Dec. 20, 1991]

§ 172.524

EXPLOSIVES 1.5 placard.

(a) Except for size and color, the EX-

PLOSIVES 1.5 placard must be as fol-
lows:

(b) In addition to complying with the

§ 172.519 of this subpart, the background
color on EXPLOSIVES 1.5 placard

must be orange. The ‘‘*’’ shall be re-
placed, when required, with the appro-
priate compatibility group letter. The
division numeral, 1.5, must measure at
least 64 mm (2.5 inches) in height. The
text, numerals and inner border must
be black.

[Amdt. 172–123, 55 FR 52602, Dec. 21, 1990, as
amended at 56 FR 66261, Dec. 20, 1991]

§ 172.525

EXPLOSIVES 1.6 placard.

(a) Except for size and color the EX-

PLOSIVES 1.6 placard must be as fol-
lows:

(b) In addition to complying with

§ 172.519 of this subpart, the background
color on the EXPLOSIVES 1.6 placard
must be orange. The ‘‘*’’ shall be re-
placed, when required, with the appro-
priate compatibility group letter. The
division numeral, 1.6, must measure at
least 64 mm (2.5 inches) in height. The
text, numerals and inner border must
be black.

[Amdt. 172–123, 55 FR 52603, Dec. 21, 1990, as
amended at 56 FR 66261, Dec. 20, 1991; Amdt.
172–130, 58 FR 51531, Oct. 1, 1993]

§ 172.526

[Reserved]

§ 172.527

Background requirements for

certain placards.

(a) Except for size and color, the

square background required by
§ 172.510(a) for certain placards on rail
cars, and § 172.507 for placards on motor
vehicles containing a package of high-
way route controlled quantity radio-
active materials, must be as follows:
