446

49 CFR Ch. I (10–1–23 Edition)

§ 172.536

FLAMMABLE GAS placard must be
red. The symbol, text, class number
and inner border must be white.

[Amdt. 172–123, 56 FR 66262, Dec. 20, 1991]

§ 172.536

[Reserved]

§ 172.540

POISON GAS placard.

(a) Except for size and color, the POI-

SON GAS placard must be as follows:

(b) In addition to complying with

§ 172.519, the background on the POI-
SON GAS placard and the symbol must
be white. The background of the upper
diamond must be black and the lower
point of the upper diamond must be 65
mm (2

5

⁄

8

inches) above the horizontal

center line. The text, class number,
and inner border must be black.

[62 FR 39408, July 22, 1997]

§ 172.542

FLAMMABLE placard.

(a) Except for size and color, the

FLAMMABLE placard must be as fol-
lows:

(b) In addition to complying with

§ 172.519, the background color on the
FLAMMABLE placard must be red.
The symbol, text, class number and
inner border must be white.

(c) The word ‘‘GASOLINE’’ may be

used in place of the word ‘‘FLAM-
MABLE’’ on a placard that is displayed
on a cargo tank or a portable tank
being used to transport gasoline by
highway. The word ‘‘GASOLINE’’ must
be shown in white.

[Amdt. 172–123, 56 FR 66262, Dec. 20, 1991]

§ 172.544

COMBUSTIBLE placard.

(a) Except for size and color, the

COMBUSTIBLE placard must be as fol-
lows:

(b) In addition to complying with

§ 172.519, the background color on the
COMBUSTIBLE placard must be red.

447

Pipeline and Haz. Matls. Safety Admin., DOT

§ 172.548

The symbol, text, class number and
inner border must be white. On a COM-
BUSTIBLE placard with a white bot-
tom as prescribed by § 172.332(c)(4), the
class number must be red or black.

(c) The words ‘‘FUEL OIL’’ may be

used in place of the word ‘‘COMBUS-
TIBLE’’ on a placard that is displayed
on a cargo tank or portable tank being
used to transport by highway fuel oil
that is not classed as a flammable liq-
uid. The words ‘‘FUEL OIL’’ must be
white.

[Amdt. 172–123, 56 FR 66262, Dec. 20, 1991]

§ 172.546

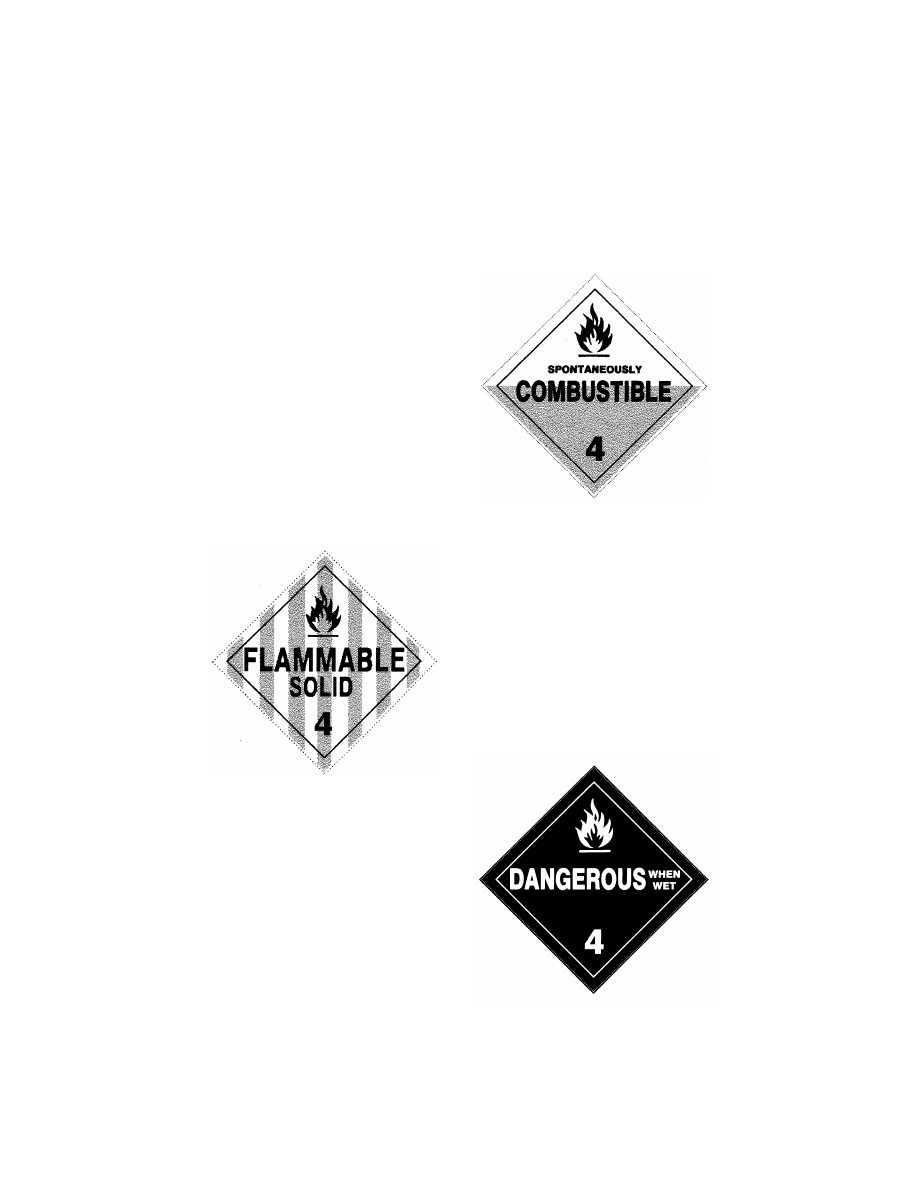

FLAMMABLE SOLID placard.

(a) Except for size and color, the

FLAMMABLE SOLID placard must be
as follows:

(b) In addition to complying with

§ 172.519, the background on the FLAM-
MABLE SOLID placard must be white
with seven vertical red stripes. The
stripes must be equally spaced, with
one red stripe placed in the center of
the label. Each red stripe and each
white space between two red stripes
must be 25 mm (1.0 inches) wide. The
letters in the word ‘‘SOLID’’ must be
at least 38.1 mm (1.5 inches) high. The
symbol, text, class number and inner
border must be black.

[Amdt. 172–123, 56 FR 66263, Dec. 20, 1991]

§ 172.547

SPONTANEOUSLY COMBUS-

TIBLE placard.

(a) Except for size and color, the

SPONTANEOUSLY COMBUSTIBLE
placard must be as follows:

(b) In addition to complying with

§ 172.519, the background color on the
SPONTANEOUSLY COMBUSTIBLE
placard must be red in the lower half
and white in upper half. The letters in
the word ‘‘SPONTANEOUSLY’’ must
be at least 12 mm (0.5 inch) high. The
symbol, text, class number and inner
border must be black.

[Amdt. 172–123, 56 FR 66263, Dec. 20, 1991, as
amended by Amdt. 172–139, 59 FR 67490, Dec.
29, 1994]

§ 172.548

DANGEROUS WHEN WET

placard.

(a) Except for size and color, the

DANGEROUS WHEN WET placard
must be as follows:

(b) In addition to complying with

§ 172.519, the background color on the
DANGEROUS WHEN WET placard
must be blue. The letters in the words
