Pipeline and Haz. Matls. Safety Admin., DOT

§ 172.548

(b) In addition to complying with

§ 172.519, the background color on the
COMBUSTIBLE placard must be red.
The symbol, text, class number and
inner border must be white. On a COM-
BUSTIBLE placard with a white bot-
tom as prescribed by § 172.332(c)(4), the
class number must be red or black.

(c) The words ‘‘FUEL OIL’’ may be

used in place of the word ‘‘COMBUS-
TIBLE’’ on a placard that is displayed
on a cargo tank or portable tank being
used to transport by highway fuel oil
that is not classed as a flammable liq-
uid. The words ‘‘FUEL OIL’’ must be
white.

[Amdt. 172–123, 56 FR 66262, Dec. 20, 1991]

§ 172.546

FLAMMABLE SOLID placard.

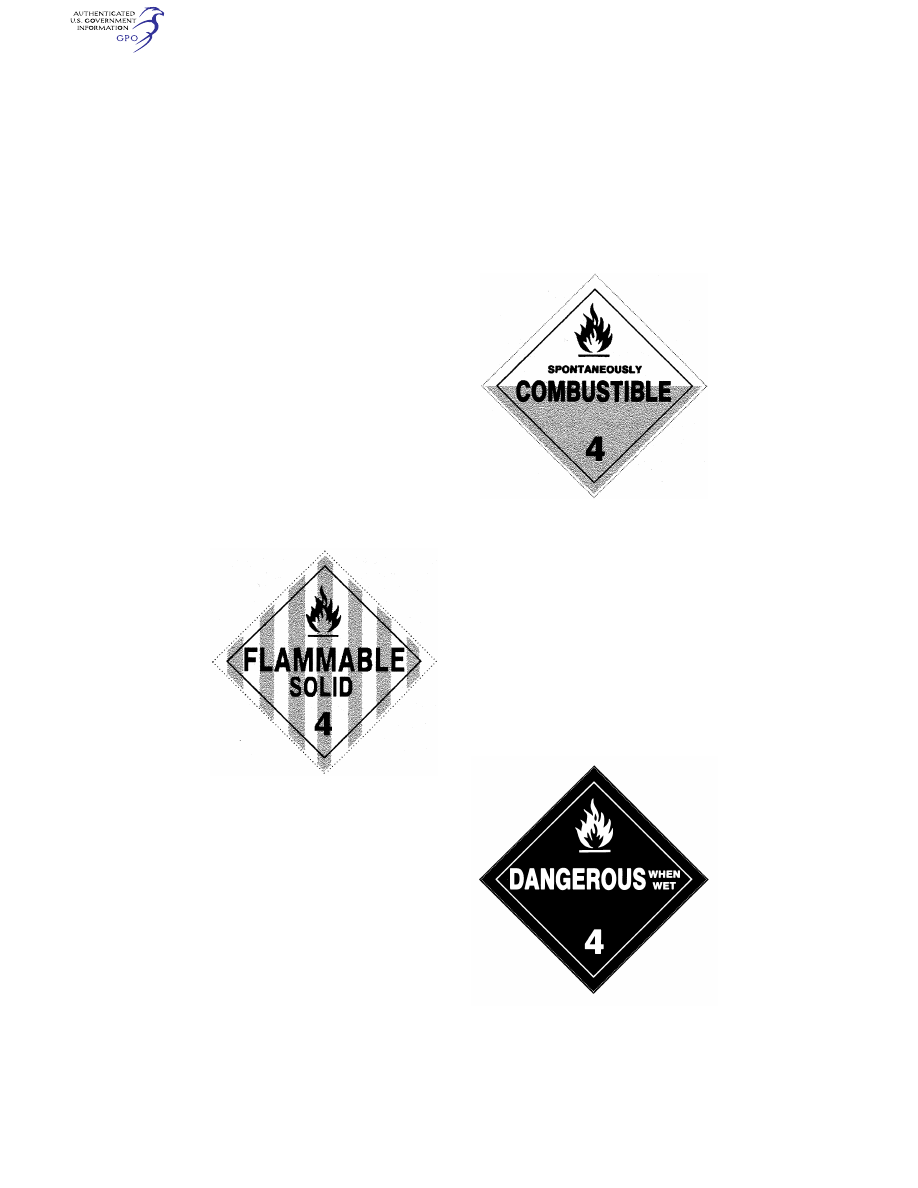

(a) Except for size and color, the

FLAMMABLE SOLID placard must be
as follows:

(b) In addition to complying with

§ 172.519, the background on the FLAM-
MABLE SOLID placard must be white
with seven vertical red stripes. The
stripes must be equally spaced, with
one red stripe placed in the center of
the label. Each red stripe and each
white space between two red stripes
must be 25 mm (1.0 inches) wide. The
letters in the word ‘‘SOLID’’ must be
at least 38.1 mm (1.5 inches) high. The
symbol, text, class number and inner
border must be black.

[Amdt. 172–123, 56 FR 66263, Dec. 20, 1991]

§ 172.547

SPONTANEOUSLY COMBUS-

TIBLE placard.

(a) Except for size and color, the

SPONTANEOUSLY COMBUSTIBLE
placard must be as follows:

(b) In addition to complying with

§ 172.519, the background color on the
SPONTANEOUSLY COMBUSTIBLE
placard must be red in the lower half
and white in upper half. The letters in
the word ‘‘SPONTANEOUSLY’’ must
be at least 12 mm (0.5 inch) high. The
symbol, text, class number and inner
border must be black.

[Amdt. 172–123, 56 FR 66263, Dec. 20, 1991, as
amended by Amdt. 172–139, 59 FR 67490, Dec.
29, 1994]

§ 172.548

DANGEROUS WHEN WET

placard.

(a) Except for size and color, the

DANGEROUS WHEN WET placard
must be as follows:
