Pipeline and Haz. Matls. Safety Admin., DOT

§ 172.558

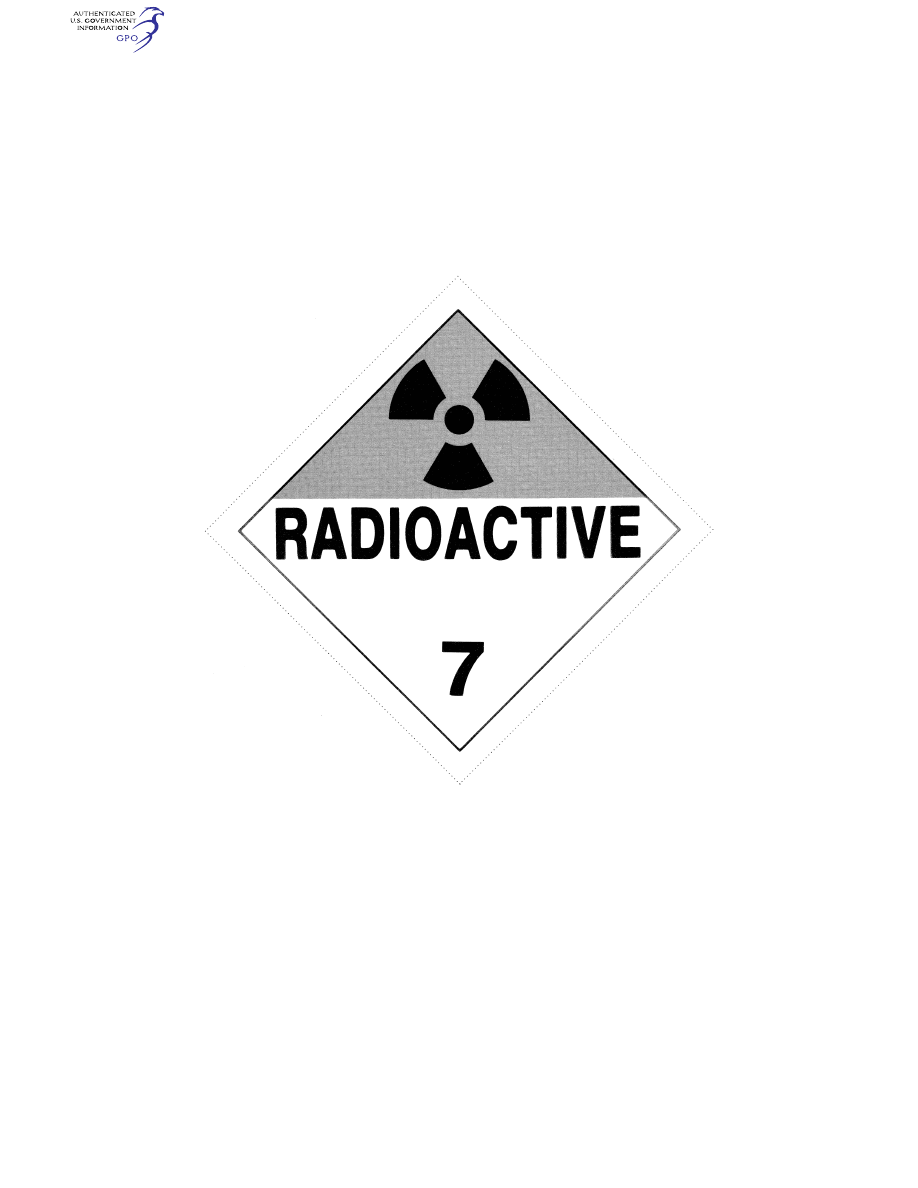

(b) In addition to complying with

§ 172.519, the background color on the
RADIOACTIVE placard must be white
in the lower portion with a yellow tri-
angle in the upper portion. The base of
the yellow triangle must be 29 mm

±

mm (1.1 inches

±

0.2 inches) above the

placard horizontal center line. The

symbol, text, class number and inner
border must be black.

[Amdt. 172–123, 56 FR 66264, Dec. 20, 1991;
Amdt. 172–130, 58 FR 51531, Oct. 1, 1993; 65 FR
58627, Sept. 29, 2000]

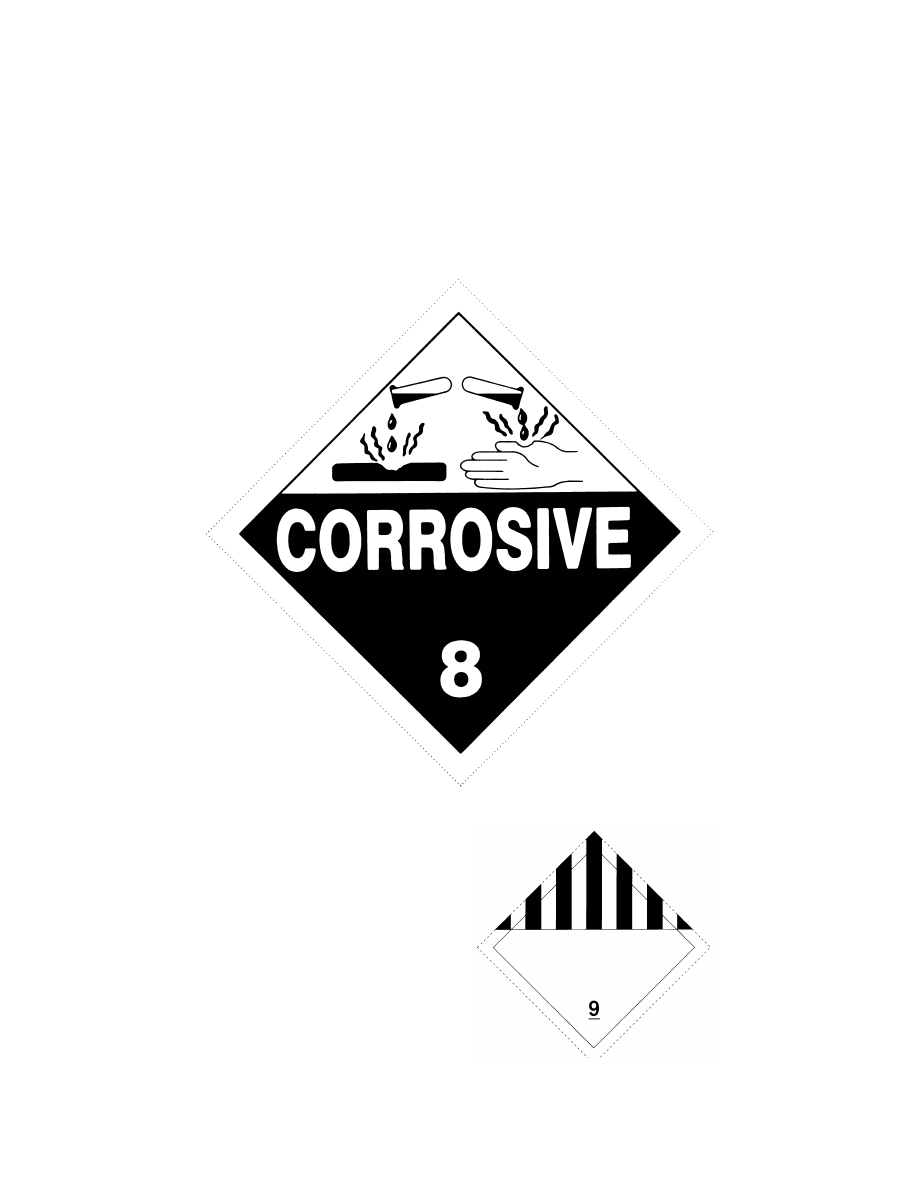

§ 172.558

CORROSIVE placard.

(a) Except for size and color, the

CORROSIVE placard must be as fol-
lows:

VerDate Sep<11>2014

11:45 Oct 30, 2019

Jkt 247227

PO 00000

Frm 00451

Fmt 8010

Sfmt 8010

Q:\49\49V2.TXT

PC31

ER29SE00.001</GPH>

kpayne on VMOFRWIN702 with $$_JOB

background image

442

49 CFR Ch. I (10–1–19 Edition)

§ 172.560

(b) In addition to complying with

§ 172.519, the background color on the
CORROSIVE placard must be black in
the lower portion with a white triangle
in the upper portion. The base of the
white triangle must be 38 mm

±

5 mm

(1.5 inches

±

0.2 inches) above the

placard horizontal center line. The text
and class number must be white. The
symbol and inner border must be black.

[Amdt. 172–123, 56 FR 66264, Dec. 20, 1991, as
amended at 65 FR 58627, Sept. 29, 2000]

§ 172.560

CLASS 9 placard.

(a) Except for size and color the

CLASS 9 (miscellaneous hazardous ma-
terials) placard must be as follows:

VerDate Sep<11>2014

11:45 Oct 30, 2019

Jkt 247227

PO 00000

Frm 00452

Fmt 8010

Sfmt 8010

Q:\49\49V2.TXT

PC31

ER29SE00.002</GPH>

EC02MR91.060</GPH>
